Thread: How to: Wiring Case Fans

  1. #1
    31drew31's Avatar
    Join Date
    Apr 2010
    Location
    Calgary, AB
    Posts
    757
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    How to: Wiring Case Fans

    I was taking pictures on how to wire a case fan (DC) to an AC wall plug for another member and figured I would just make a post for everyone to see. This is good for getting air circulation inside of a humid terrarium which is great for plants, or for placing at the end of a light fixture to cool it down. If using inside a terrarium with animals be sure to glue screen on the front and back of the fan so the animals can't get the the fan blades and injure themselves.

    Materials

    Case fan from CPU store, ebay etc.



    110V AC/DC converter, I prefer the variable output ones so you can select how fast the fan spins. Make sure this puts out more amps than the fan requires, with 10-20% or more excess output. (Most cell phone charger will work too but will be a constant output of 5V usually)



    Electrical tape
    Wire cutters

    Optional:
    Soldering Iron
    Solder

    Step 1

    Make sure your converter is unplugged from the wall. Cut off the plug on the end of the wire exposing the two wires. Do the same with the fan. Some fans have 2 wires and some have 3. Either are fine but if yours has 3 you wont need the yellow one so you can cut it short and get it out of the way. Split the two wires apart 2-3" down so you can split them nicely and have room to work on individual wires.

    I do not have pictures of this because this fan was already wired and I took it apart for this How to post.

    Step 2

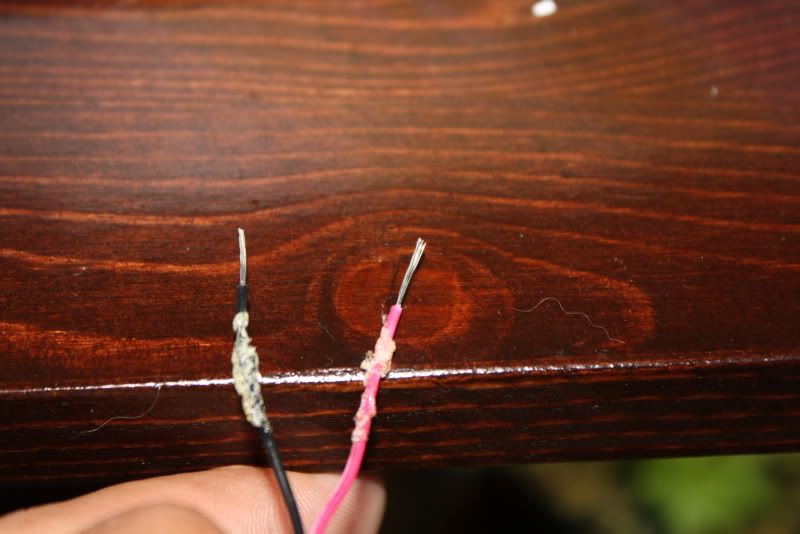

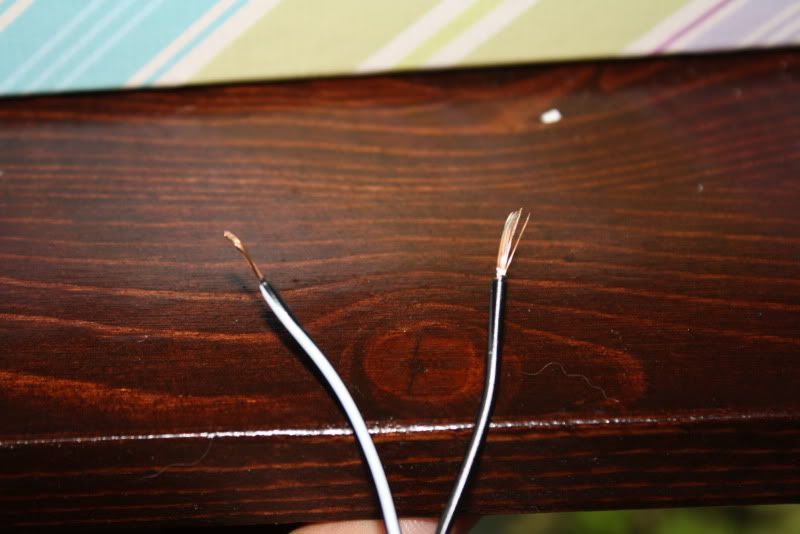

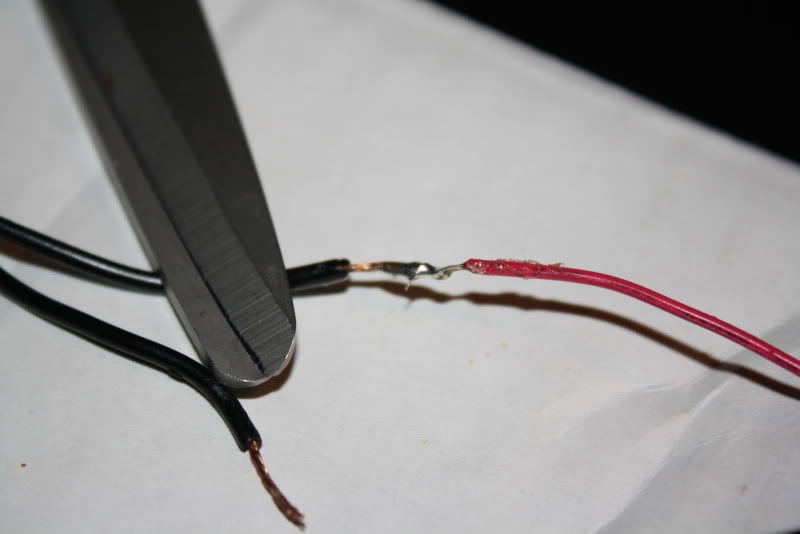

    Strip the 2 wires on both the converter and fan. I usually do about 1/2" to 3/4". Please excuse the glue on the wires, I had it glued into place prior to taking the pictures.






    Step 3

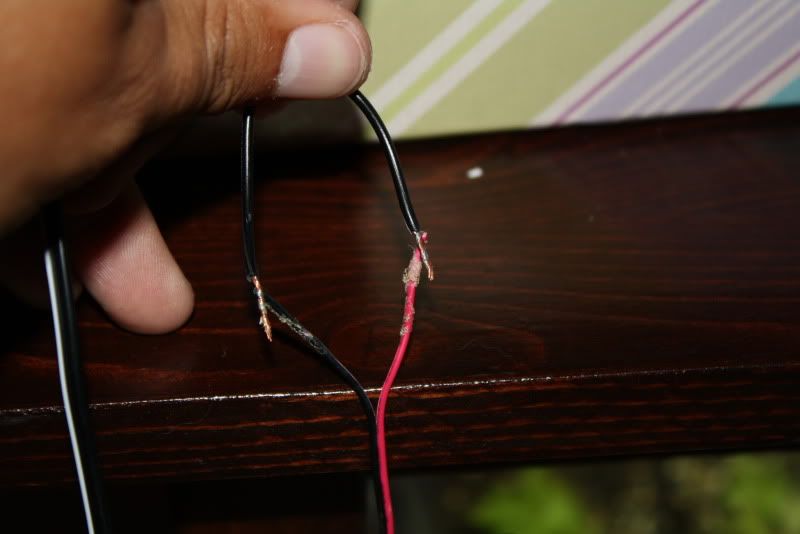

    Twist the wires from the converter to the fan. Pure black wire on the converter goes to the negative wire on the fan (black wire). Black wire with white stripe on converter goes with the positive wire on the fan (red wire).




    Step 4

    Plug converter into your wall outlet making sure to keep the two wires away from each other so it doesn't short. I do this to make sure the fan is working, and is spinning the correct way. If its spinning backwards, or isn't working flip the wires. If it is spinning the correct direction unplug.

    Step 5 Soldering Method

    If you dont have a soldering iron skip this step and go to the next step (taping method)

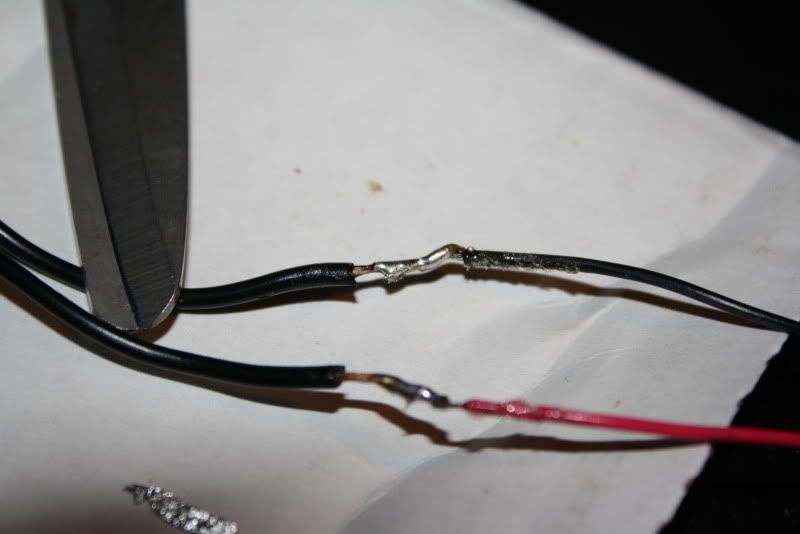

    Solder your first wire together making sure to have a good connection. Now solder the other wire. Take electrical tape and tape each wire separately to insure it wont short out. Now tape the two wires together to clean it up.












    Step 5 Taping Method

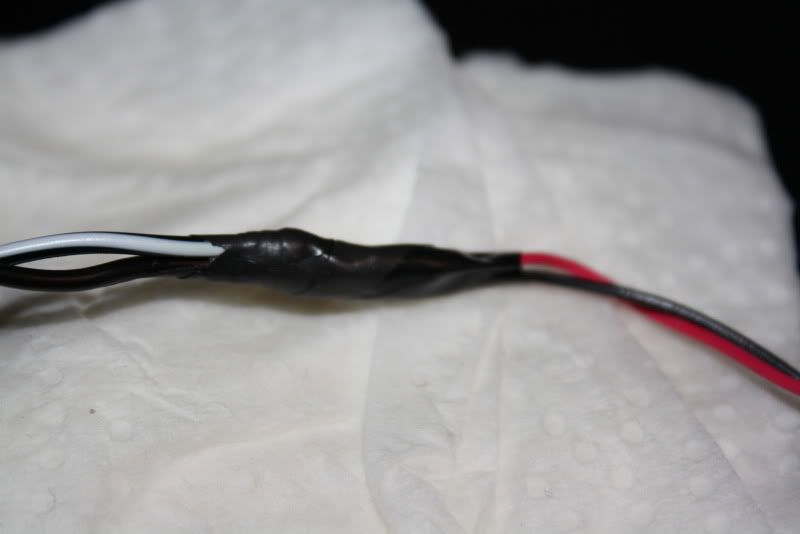

    Take your first wire and take a small piece of electrical tape, approximately 1" and wrap it tightly around the twisted wire making sure to completely cover where the wire has been stripped. Now do your second wire separately the same as the first wire. Now take a larger piece of electrical tape, approximately 2" and tape the two wires together creating one wire to clean it up.








    Step 6

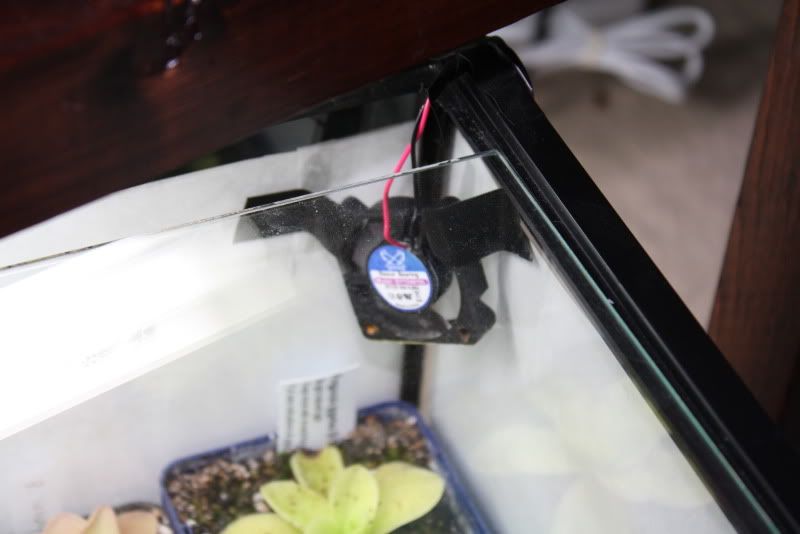

    Plug it in to make sure it is still working and you haven't made a mistake along the way. You are now ready to install it in your terrarium, vivarium, beside your lights to cool them off or whatever you are intending to do with the fan. Im lazy so I just take a little electrical tape and tape the fan in the corner of the aquarium making sure there is enough room behind the fan so air can be sucked in through the fan and out blowing over my plants.




    Wiring more than 1 fan
    Now if you want to hook up more than one fan you can do so on the same converter as long as the total input of amps of the fans is less than the output of the converter. Its always a good idea to leave 10-20% of room so you dont end up drawing too much amps from the converter on start up.

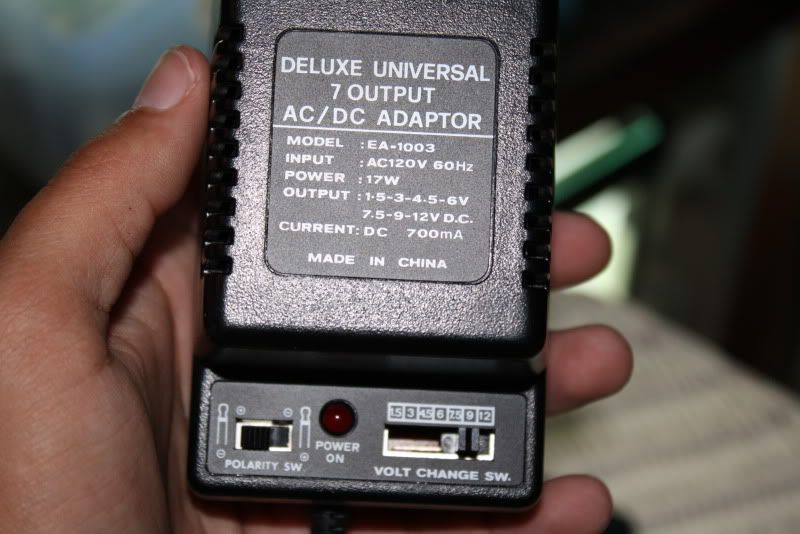

    Ex: my converters output is 700ma or 0.7 amps.
    0.7 x 0.20 = 0.14 amps

    0.7 - 0.14 = 0.56 amps. This is how much amps I consider is safe to draw from the converter.

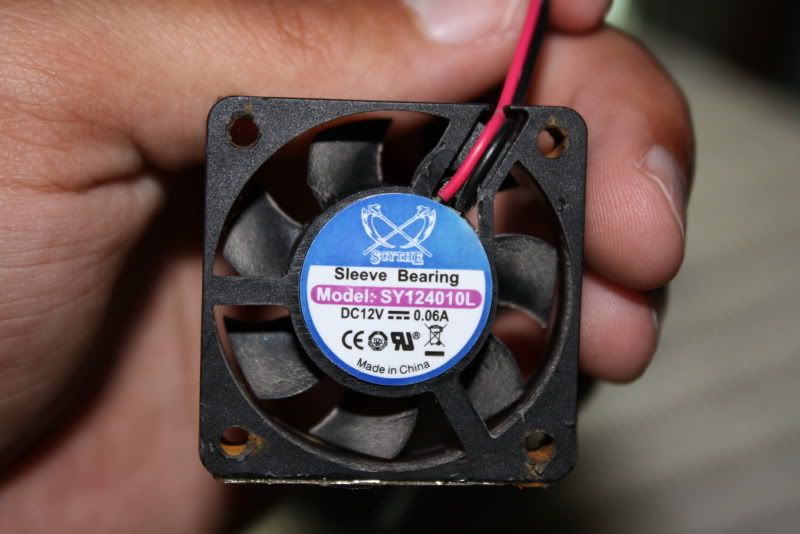

    My fans are 0.06 amps.

    0.56 / 0.06 =9.33333. So I can safely run 9 fans off this converter assuming all 9 fans draw the same amps.

    If anyone has any questions feel free to post or send me a PM.

  2. #2
    Carnivorous plant enthusiast vraev's Avatar
    Join Date
    Aug 2006
    Location
    Ontario, Canada
    Posts
    2,806
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)
    Good job! Nice guide for people trying to wire their first fan. I went the lazy route and got a adapter that was prewired to use these fans.

  3. #3
    afrodisa's Avatar
    Join Date
    May 2011
    Location
    Tidewater Virginia, USA
    Posts
    567
    Mentioned
    3 Post(s)
    Tagged
    0 Thread(s)
    Nice tutorial!

    Just a note on the splices - I always stagger the cuts, making the cut in the second wire about an inch down from the one in the first wire, that way if the tape peels off due to the humidity the wires won't be as likely to short together. At 12 volts DC it would only blow the adapter - at higher voltages (110 VAC)?

  4. #4
    I hate bugs. Carnivorous plants get me. jpappy789's Avatar
    Join Date
    Apr 2010
    Location
    Gainesville, FL
    Posts
    1,161
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Thanks drew! Will be trying this soon.
    -Josh
    Grow list

  5. #5
    31drew31's Avatar
    Join Date
    Apr 2010
    Location
    Calgary, AB
    Posts
    757
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    No problem jpappy.

    That is a good suggestion afrodisa. All my connections are outside the terrarium so I'm not too worried but if it was inside it could possibly be a problem. Another thing mentioned on another forum was use of heat shrink tubing instead of electrical tape. I find tape sticks very well if pulled tightly. Of course there is also liquid electrical tape too.

  6. #6
    Getting There...
    Join Date
    Sep 2008
    Location
    Madison, WI USA
    Posts
    799
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Anyway to get this stickied? It's an experience I think everyone has to do at least once!

  7. #7
    Never Knows Best gill_za's Avatar
    Join Date
    Jan 2011
    Location
    Philadephia, PA
    Posts
    996
    Mentioned
    7 Post(s)
    Tagged
    0 Thread(s)
    You should also mention that if one connects more than one fan across the circuit one should connect the fans in parallel to make sure that the same voltage is applied across both fans. Simple computer fans are usually voltage driven and if one connects the fans in series the voltage across each fan will be equal to a half of a total voltage supplied by the PSU.

    PS. that is the way fans, hdd, cd-roms and etc are connected in your PC

  8. #8
    I hate bugs. Carnivorous plants get me. jpappy789's Avatar
    Join Date
    Apr 2010
    Location
    Gainesville, FL
    Posts
    1,161
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    I feel bad...I broke down and bought some clip fans as the tanks are going "kaput!"

    Still a nice write up to reference for future use. I'm sure I will give it a go someday...
    -Josh
    Grow list
